M673
CNC Gear Shaping Machine

20.3 DP
Max Pitch Rating
3.15"
Max Gear Diameter
7
CNC Axes
High-speed CNC shaping machine for universal shaping of internal and external gears and other tooth profiles.
High-speed CNC shaping:
2,000 strokes per minute.
Up to seven CNC axes.
Flexible automation system with options.
Capable workpiece clamping system.
Effective tailstock with optimized clearance.
Versatile shaper cutters:
Disc type.
Bell type.
Shank type.
Flexible automation systems:
Linear loader.
Robotic loader.
Various magazine systems.
Bolstering your quality and productivity.
The M673 gear shaping machine from Monnier + Zahner offers universal shaping for the machining of internal and external gears and other tooth profiles that can be manufactured by the shaping process.
Automation options for the M673
Each option below can be configured for this machine to match your part, batch size, and cell layout. Our applications team will help you choose the right setup.
Gantry Loader
Gravity Magazine
Bowl Feeder
Industrial Robot
Cobot

M673
Technical Specifications


Metric / Imperial
Max Pitch Rating
1.25 mn / 20 DP
Max Workpiece Diameter
80 mm / 3.15 in
Max Workpiece Length
120 mm / 4.72 in
Cutter Head Radial Travel
220 mm / 8.61 in
Min. Radial Position of Cutter Head
1.25 mn / 20 DP
Max. Radial Position of Cutter Head
176 mm / 6.93 in
Total Tailstock Travel
195 mm / 7.67 in
Min. Tailstock Position
57 mm / 2.24 in
Max. Tailstock Position
252 mm / 9.92 in
Max. Work Spindle Speed
300 rpm
Max. Hob Diameter
100 mm / 3.94 in

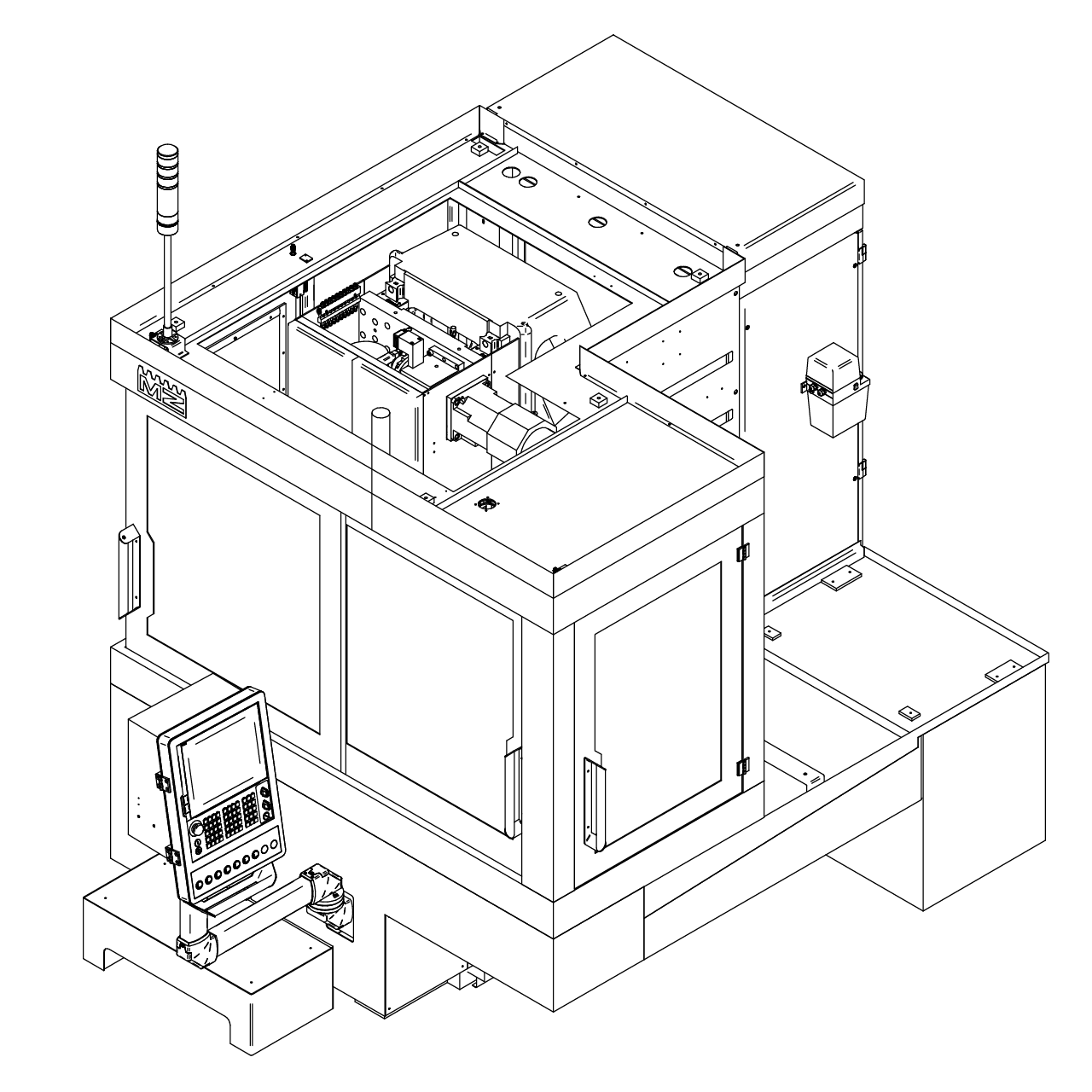

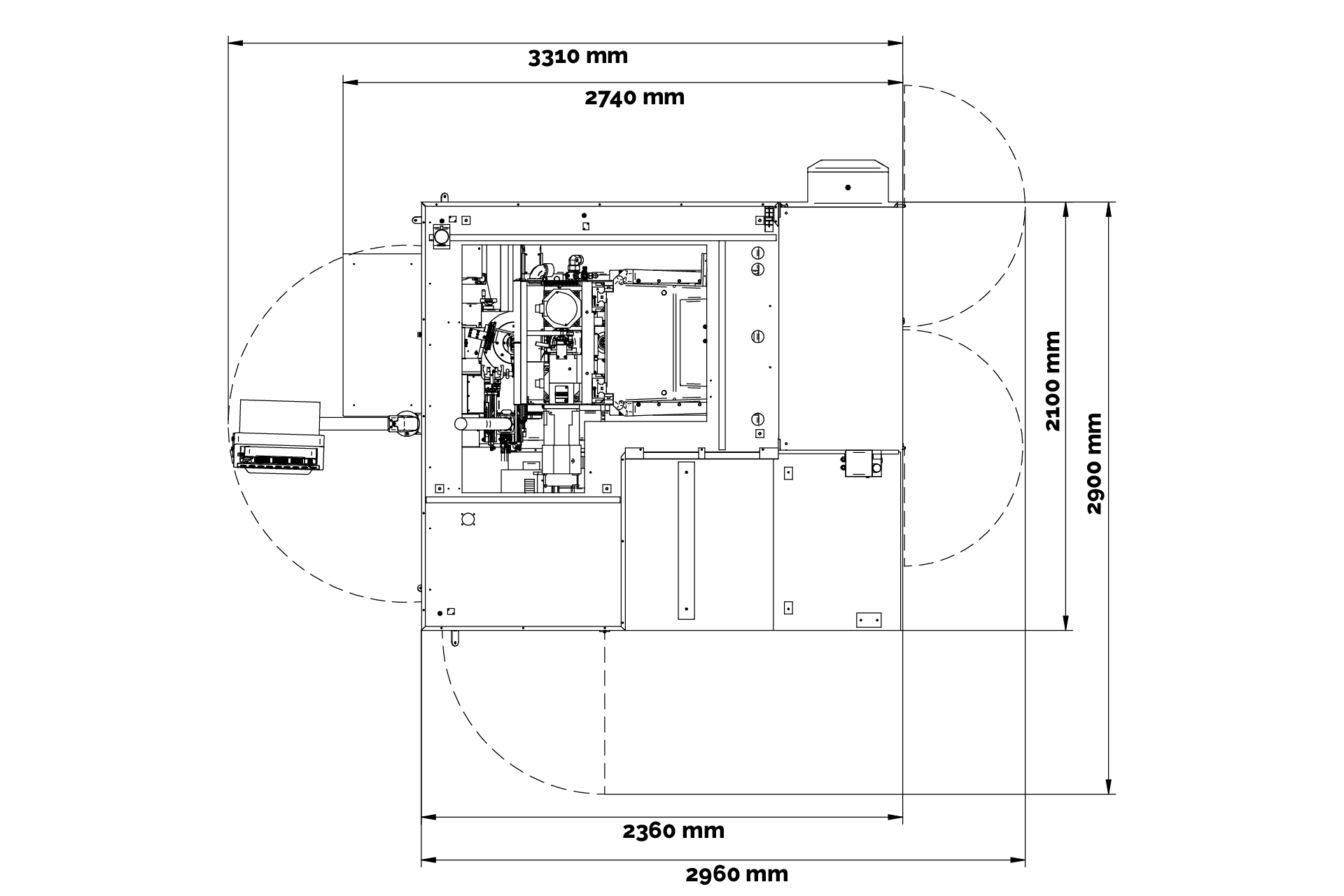

Swivel Range
Width
3,100 mm / 122 in
Depth
2,400 mm / 95 in
Height
3,000 mm / 118 in
Weight
9,000 kg / 19,842 lb
Electrical Connection
220V, 3 phase, 60 Hz
