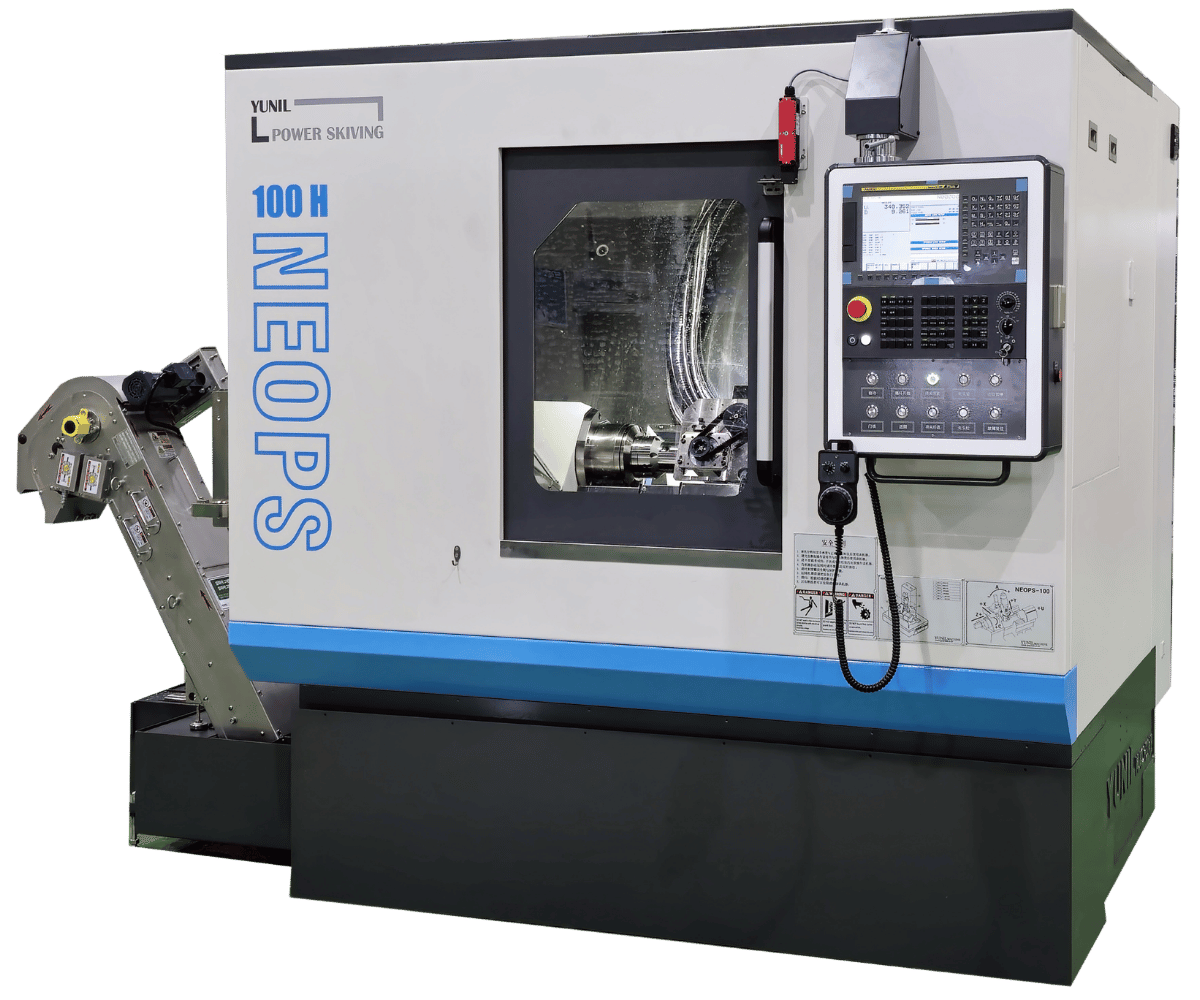

NEOPS 100
CNC Power Skiving and Hobbing Machine
7.26 DP
Max Pitch Rating
6,000
RPM Skiving Speed
6
CNC Axes
Compact power skiving machine for the production of internal and external spur or helical gears, plus external hobbing.
Heavy duty skiving head:
Driven via FANUC® direct-drive torque motor with a maximum spindle speed of 6,000 rpm and HSK63 tool spindle taper.
CNC by FANUC® 0i-MF with 6 axes (optional 7).
Automatic X-axis retract at power failure to safeguard costly tooling.
Optional automatic hydraulic work clamping and gantry loader.
Quality components and construction.
FANUC® 0i-MF CNC with servo motors.
Direct-drive cutter and work spindles.
Slant-bed base for operator ergonomics and efficient chip removal.
Precision, repeatability, and control with linear scales and rotary encoders.
Bolstering your quality and productivity.
The NEOPS 100 CNC power skiving machine combines advanced technology, precision components, and economic pricing to enable profitable production of high-quality components and gear profiles.
NEOPS 100
Technical Specifications
Metric / Imperial
Max Pitch Rating
2.50 mn / 7.26 DP
Max Workpiece Diameter
100 mm / 3.937 in
Max Workpiece Length
350 mm / 13.780 in
Cutter Head Radial Travel
90 mm / 3.543 in
Min. Radial Position of Cutter Head
2.50 mn / 7.26 DP
Max. Radial Position of Cutter Head
100 mm / 3.937 in
Max. Work Spindle Speed
3,000 rpm
Max. Spindle Speed
6,000 rpm
Max. Cutter Width
80 mm / 3.150 in
Max. Cutter Shift
120 mm / 4.724 in
Width
3,440 mm / 11.29 ft
Depth
2,820 mm / 9.25 ft
Height
2,640 mm / 8.66 ft
Weight
5,500 kg / 12,125 lb
Total Connected Load
100 kVA
Electrical Connection
220V ±10%, 3 phase, 60 Hz
